Axial Cyclone
A sawdust cyclone based on centrifugal separation — Optimized for improved airflow mechanics.
Two Phase
Effectively filter out large planar chips in the initial separation phase. Fine sawdust powder gets filtered out in the second phase from centrifugal motion.
High Flow
Dual pipes and axial separation allow for smooth airflow and minimal pressure drop. Less airflow restriction means more suction at the cutting tool and a cleaner workspace.
High Efficiency

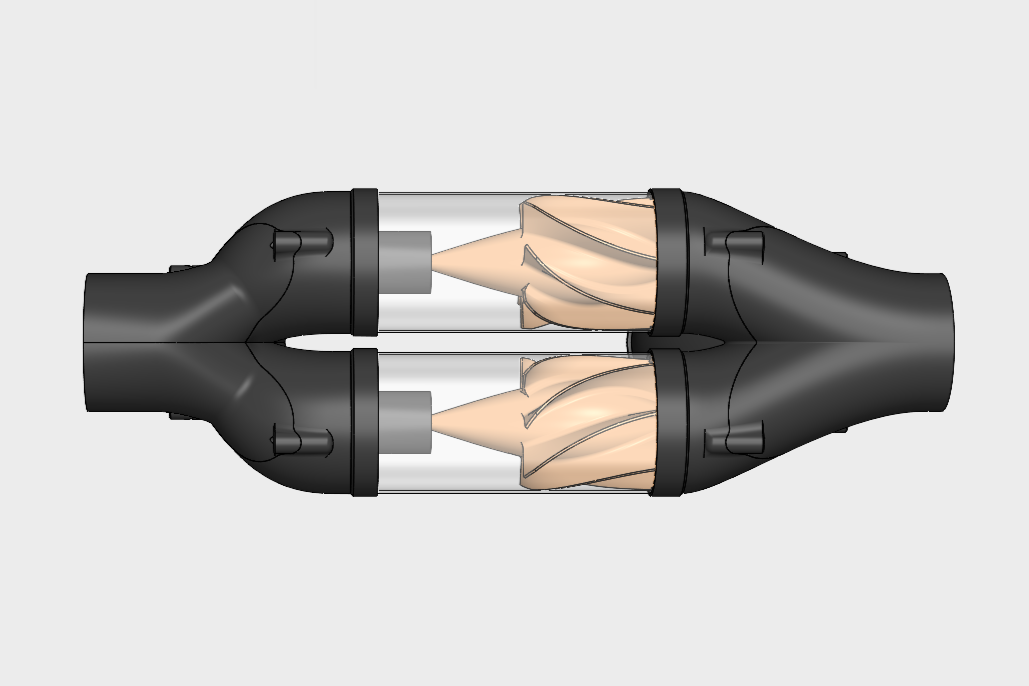

Uses internal flow-directing geometry to effortlessly separate out particulate while keeping airflow vectors moving inline. Don’t sacrifice airflow to get high efficiency.
For 2-3 hp collectors using 4 Inch Ducts
A compact sawdust cyclone — Optimized for minimal flow restriction.

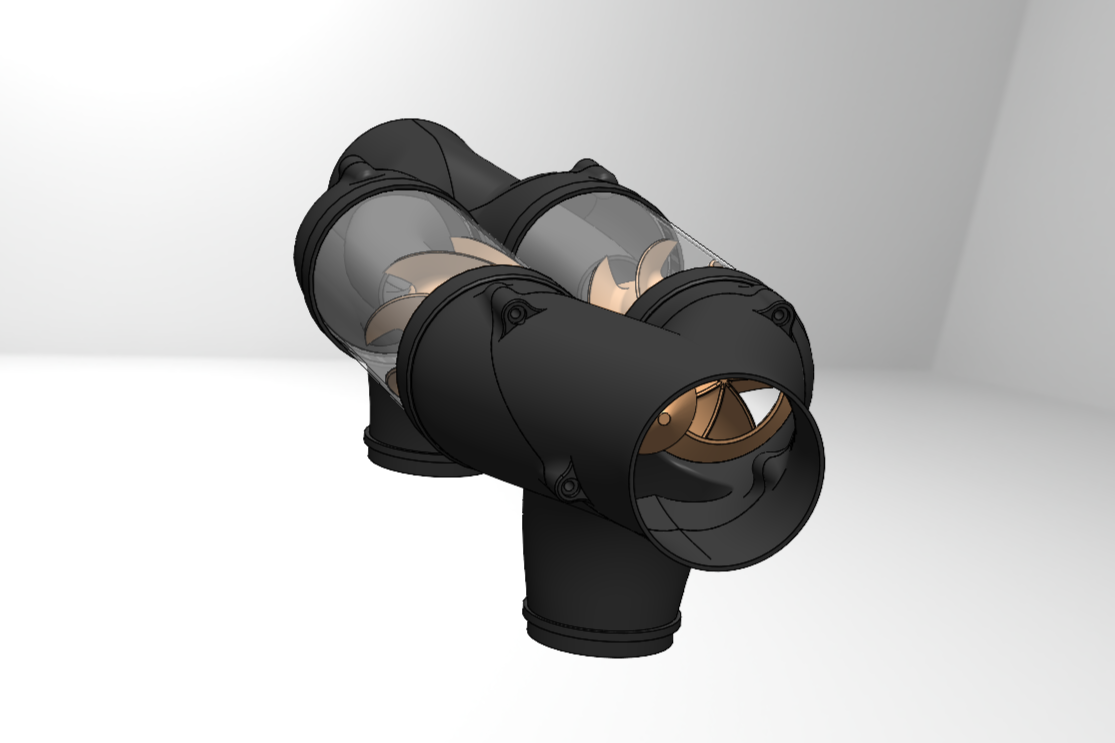

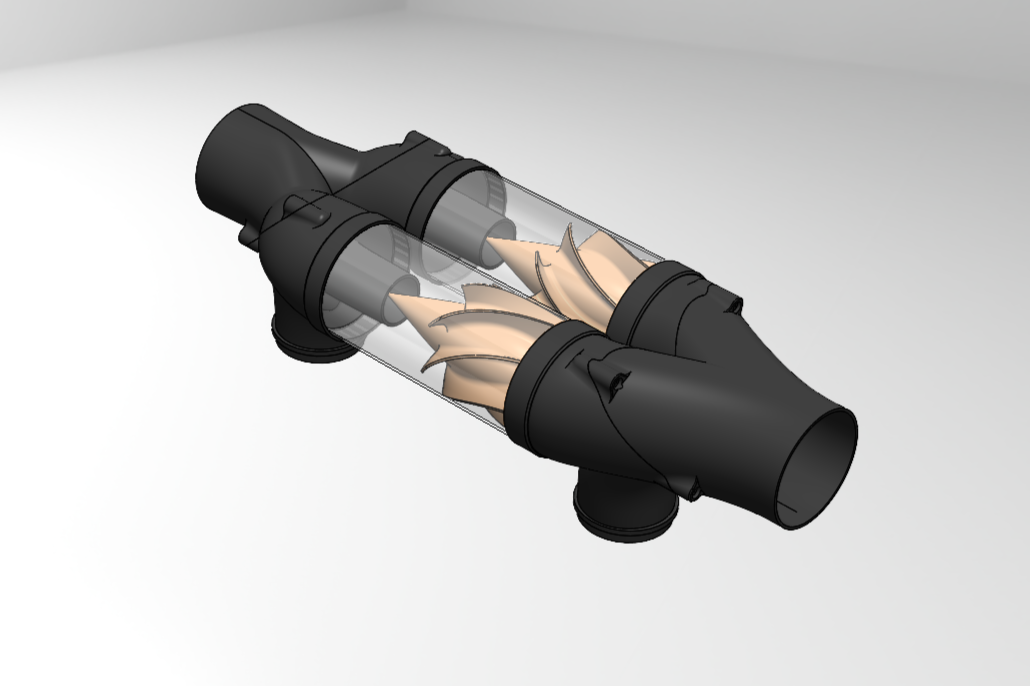

The Axial Cyclone — Mark 1 is a cyclone separator, designed specifically for the hobbyist woodworker who’s workshop has limited space. Ultra-compact footprint and a legendary pressure-drop rating to maximize the effective CFM of your collector.
Tangential cyclones work well but are highly restrictive, which forces shop owners to upgrade to larger collectors to get adequate air quality. When all you have is a 2-3 Hp collector, the only option is to maximize the available CFM by minimizing drag in your ducting and cyclone setup.
By minimizing abrupt changes in airflow direction, the Axial Cyclone helps your dust collection system move more air and maintain stronger suction at the cutting tool. With a 0.86” H2O pressure drop at 90% separation efficiency — Don’t sacrifice airflow to get high-efficiency.
Built for the Modern Woodshop
Low-Restriction — Less drag, more suction.
Two-stage separation — Handles everything from large wood chips and shavings to fine woodworking dust.
Compact inline design — Fits where a traditional vertical cyclone simply won't, making better use of limited shop space.
Durable construction — The cyclone housing made from glass-filled ABS for impact strength.
Technical Specs:

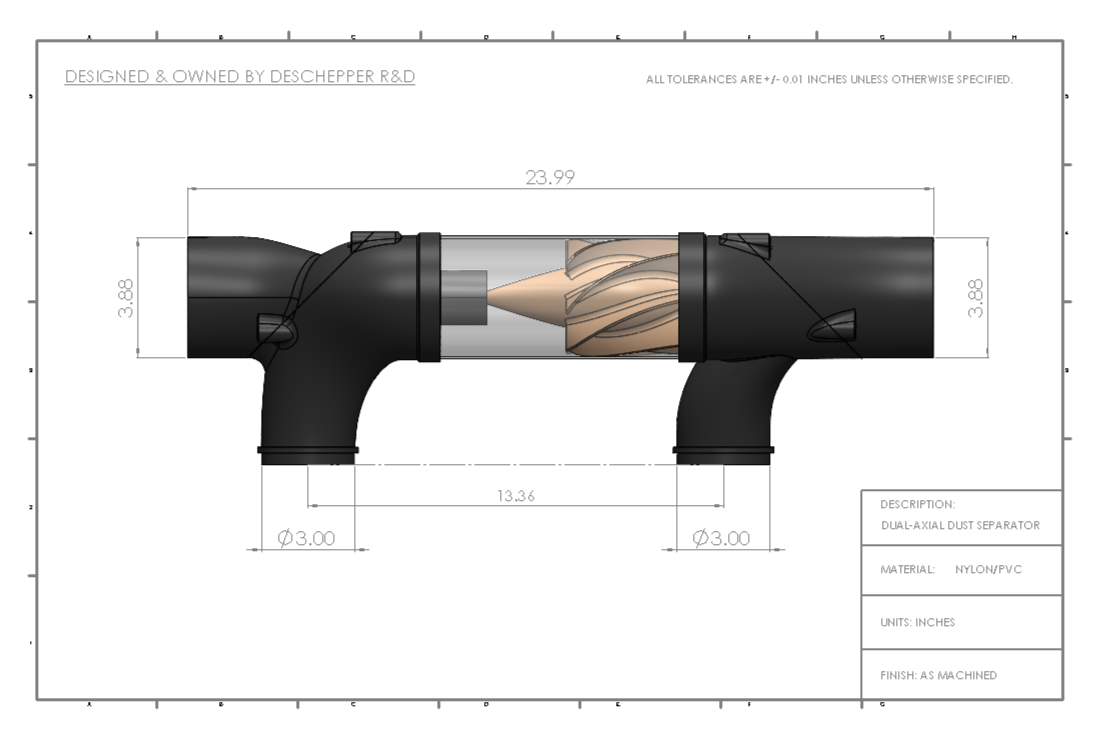

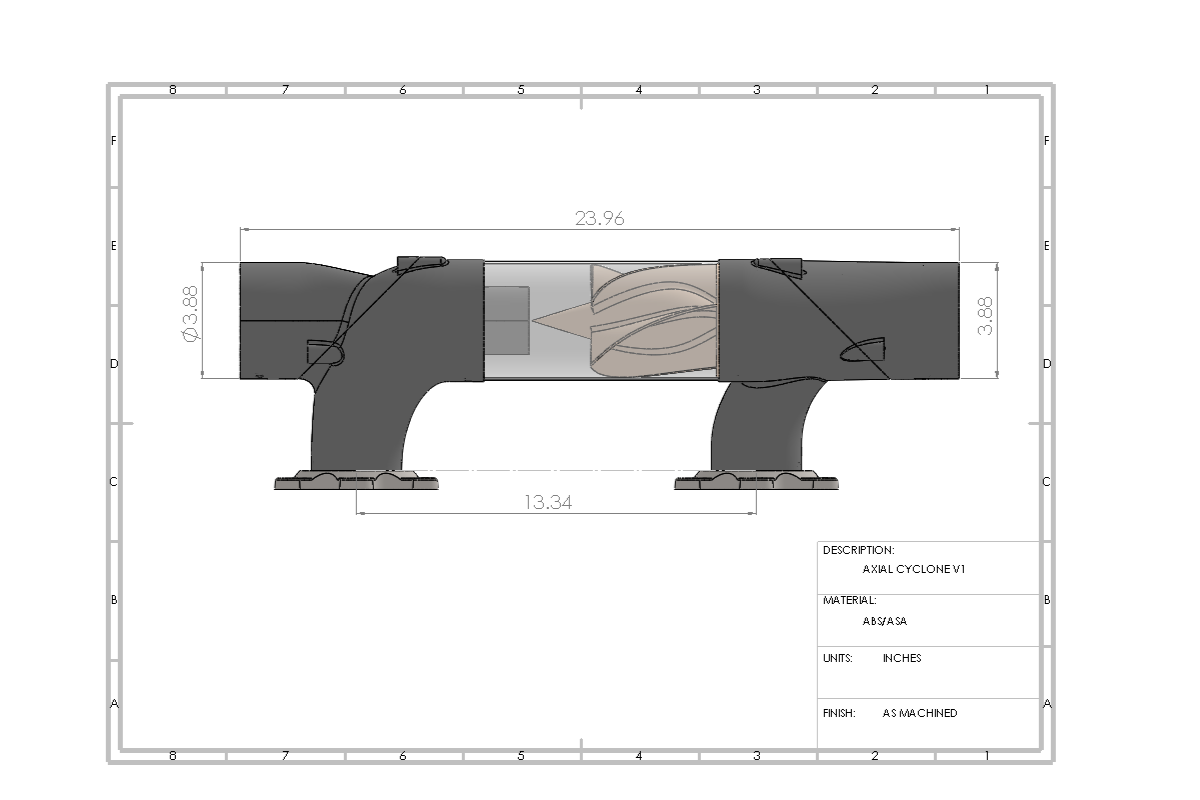

Pressure Drop = 0.86” H2O (@1000 CFM)
Separation Efficiency = 90% (@1000 CFM)
Recommended collector sizes = 800-1200 CFM
Recommended duct size = 4IN
Contents:
3D printed components (Inlet Port, Outlet Port, 2 Impellers, 2 Mounting Rings)
4IN clear PVC tubes (set of 2)
18-8 Stainless Steel hardware
*** Does not include a disposal bin ***
Current lead time is 1-2 weeks.
Completes the Axial Cyclone system. Designed around the cyclone being mounted on a shelf or bench top and the Twist-Top lids being bolted directly beneath it — This provides the most secure and easy to access configuration.
Converts standard 5Gal buckets into twist off disposal bins for the Axial Cyclone
Features:
Installed with brass #10-24 inserts for easy and sturdy mounting.
Easy access to the separator content so you can get back to cutting wood.
Perfect bolt alignment with Axial Cyclone mounting feet
Does not include 5 gallon buckets
