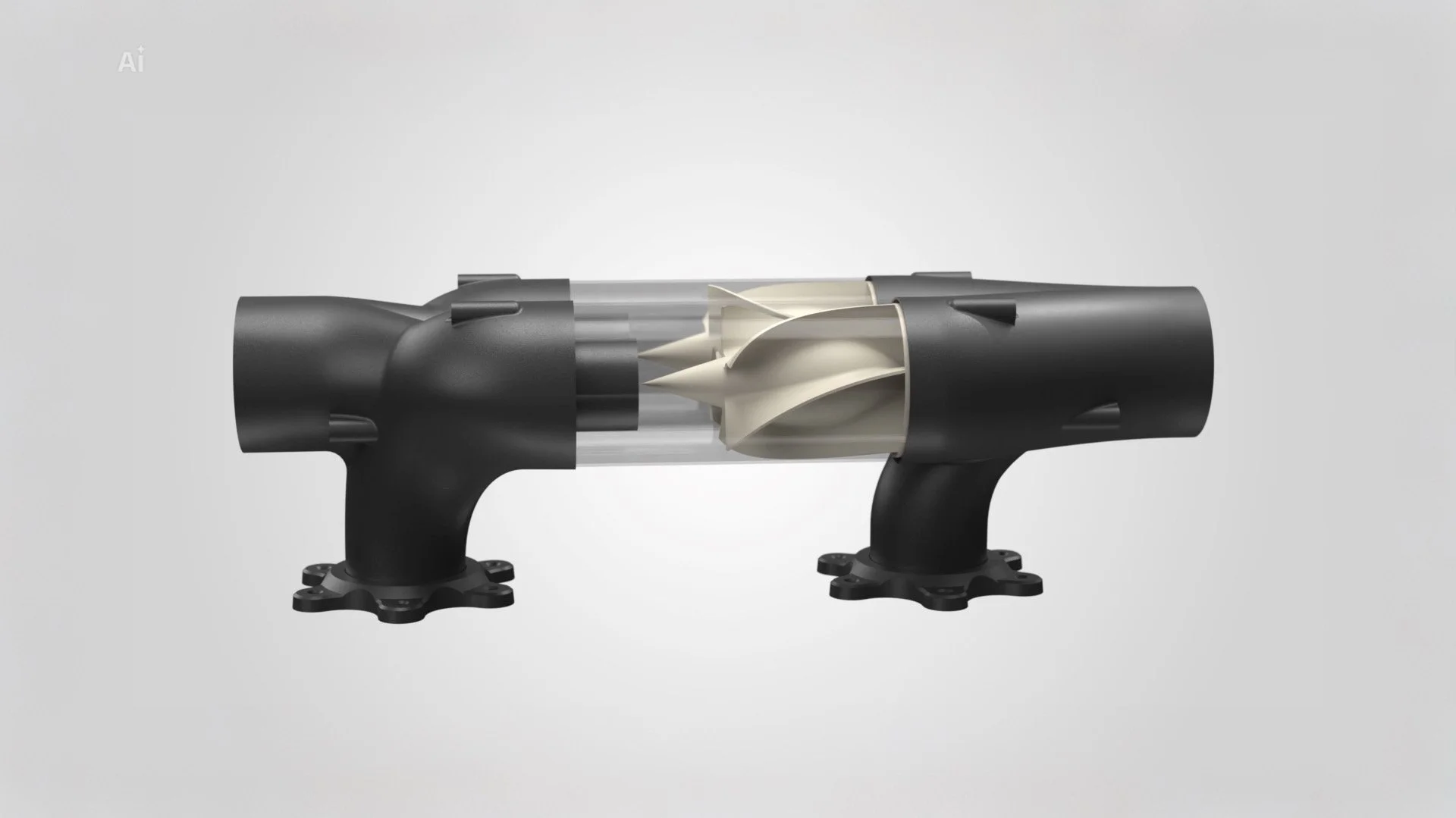

The Axial Cyclone is a drop in replacement for your traditional dust collector cyclone. While effective, vertical cyclones take up valuable shop space and restrict the airflow of your dust collector due to the abrupt change in airflow direction within your piping system.
Axial flow changes the game by optimizing for laminar flow — Both increasing the filtration efficiency at the cyclone as well as cleaning up the airflow and resulting in more “vacuum” at the port.
Leveraging the strengths of additive manufacturing, this unique design combines the best features of centrifugal separation with cyclone technology by utilizing guide vanes as well as internal walls to force particulate into the dump and streamline clean air out the other side.
Engineered to optimize airflow of your air system using advanced CFD analysis
Two phase filtration easily handles large planar chips as well as fine dust
Designed to leverage the strengths of additive manufacturing — Fully 3D printable on most consumer grade FDM printers

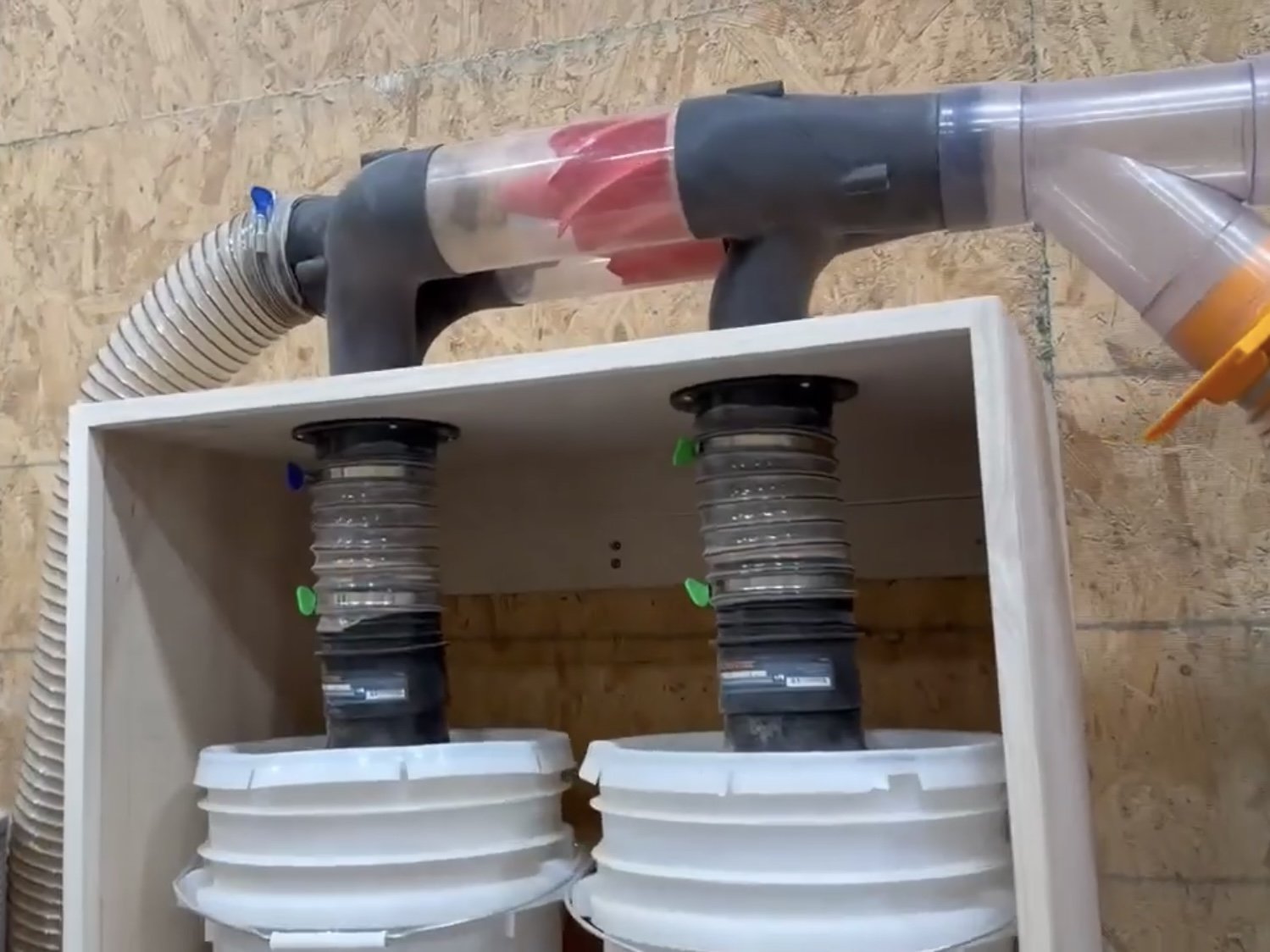

Compact size and easily adaptable to your shop setup
Housing is made from ABS - glass fiber filled, for durability and heat resistance.

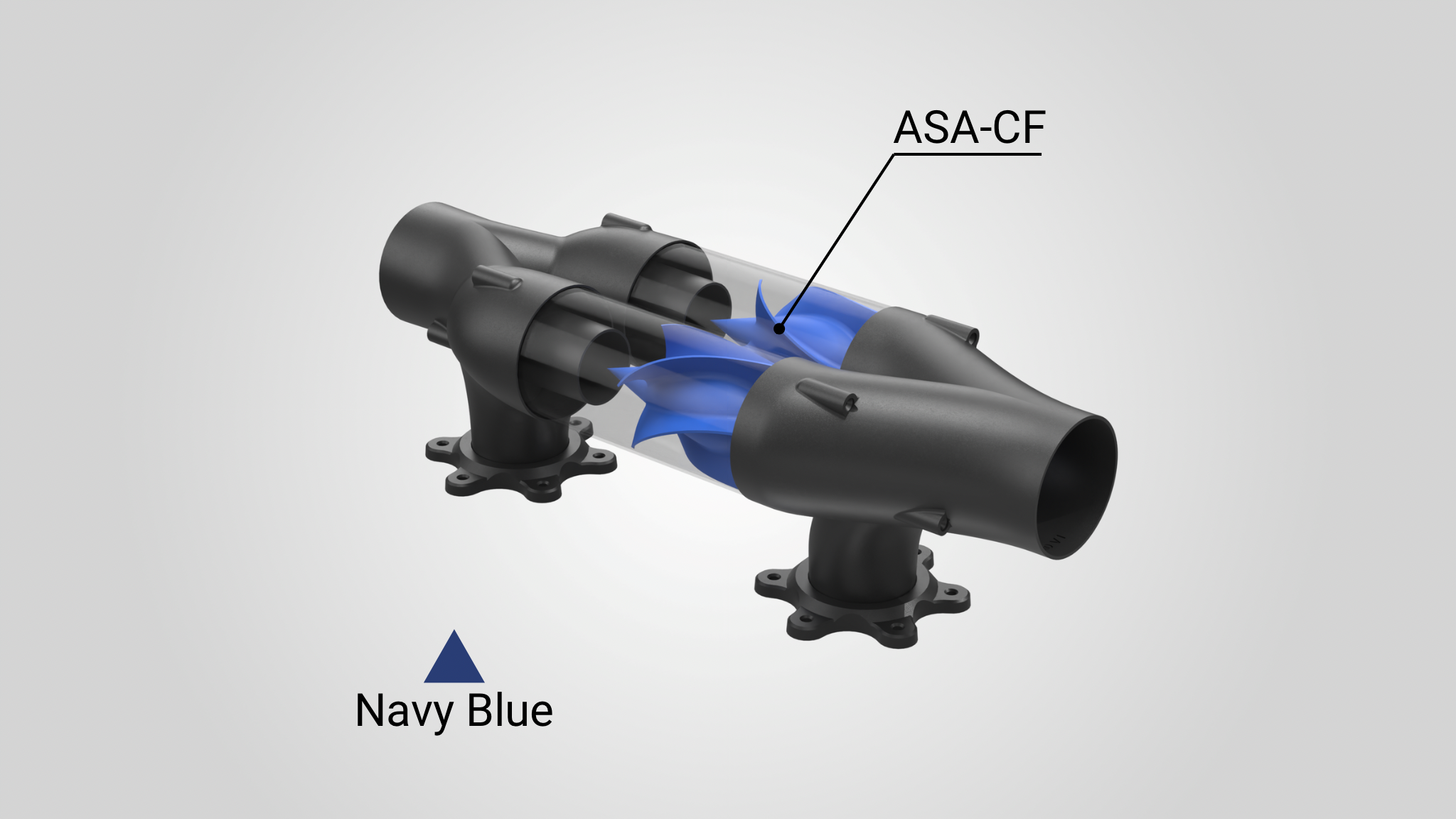

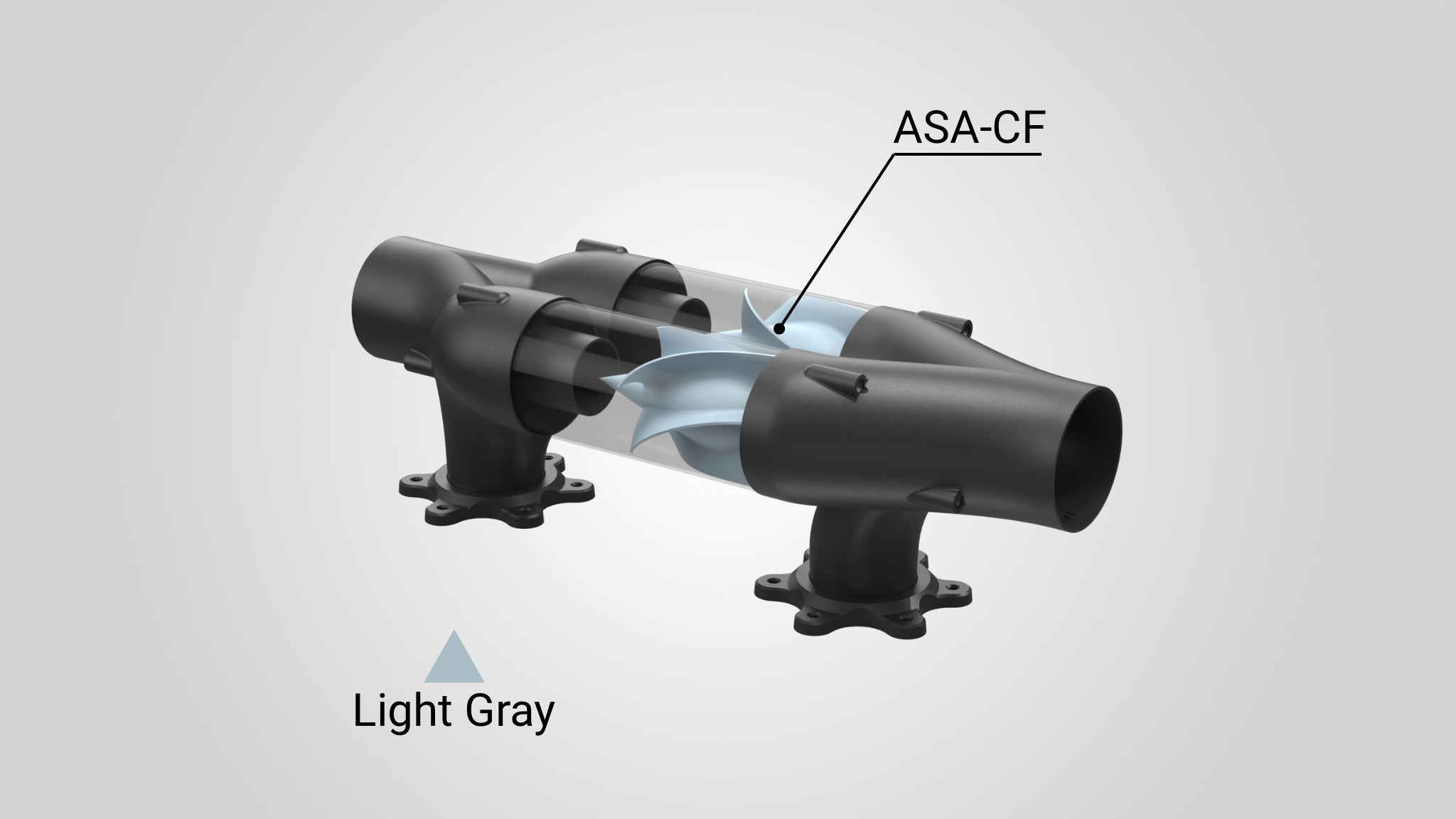

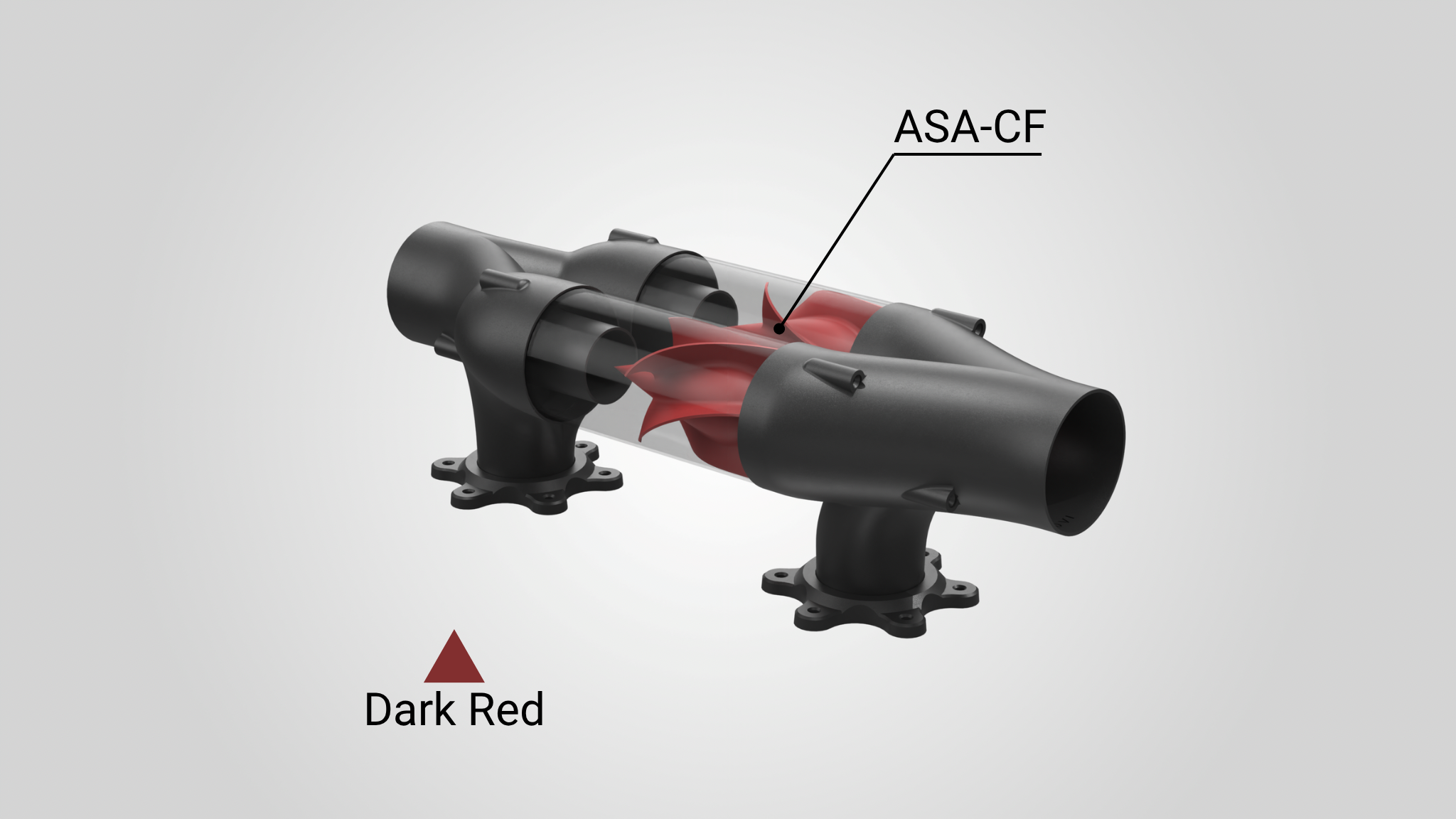

Impellers are made from ASA for wear resistance.
Pre-Built and assembled using premium engineering grade materials.
1 Dual Flow Inlet Housing
1 Dual Flow Outlet Housing
2 Axial Flow Impellers
2 Clear PVC Pipes
2 Split Ring Mounts
DIY Disposal Bin (build plans)
*** Does not include a pre-fabricated disposal bin. Please follow the included instructions to build your own out of plywood. This allows for custom sizing to your specific shop needs. ***
